Wittgen SP 15 slide paver is widely used in the construction of small concrete structures such as kerbs, shoulder, drains and ditches. In recent years, due to the obvious advantages of the sliding mode in saving labor, construction efficiency and quality, it has gradually replaced the traditional manual way of prefabricated parts and become the mainstream of the construction of small concrete structures.
Especially in areas with wide areas and weak ecological environment, SP 15 only needs cement tank truck feeding and few manual equipment operation, without the transfer cost of prefabricated parts transportation in the traditional way. It is more energy saving and emission reduction, and the construction process is very friendly to the environment. Now Xiao Wei will take you to see the recent construction style of Wittgen SP 15 sliding mode paver on the endless grassland pasture road in Inner Mongolia.
Project overview

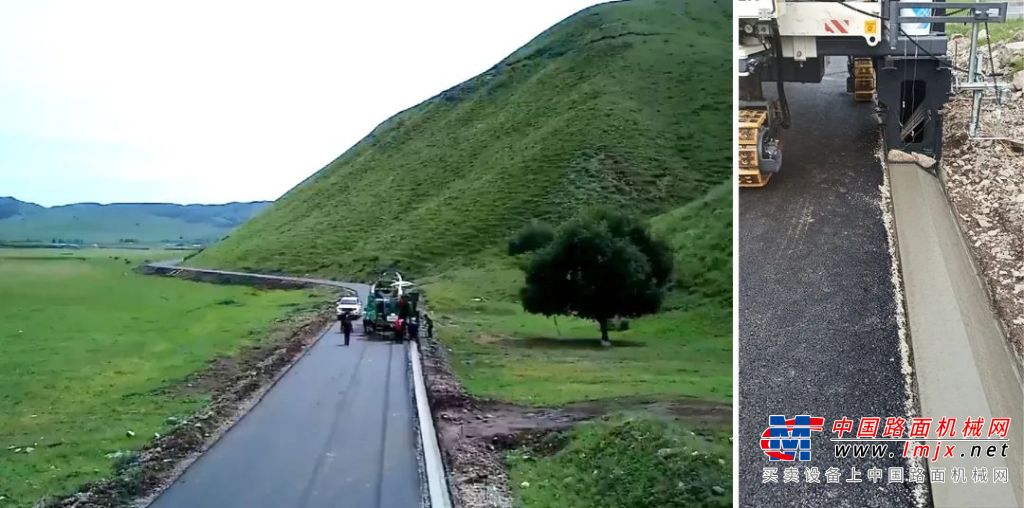

Application: Sliding form paving of road shoulder
Location: Xinganunita Grassland Tourism Road, Inner Mongolia
Spreading speed: 8-10 m/min

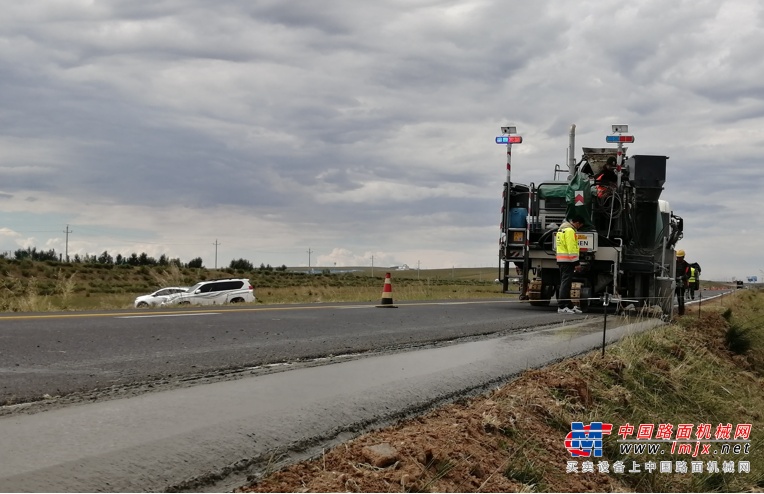

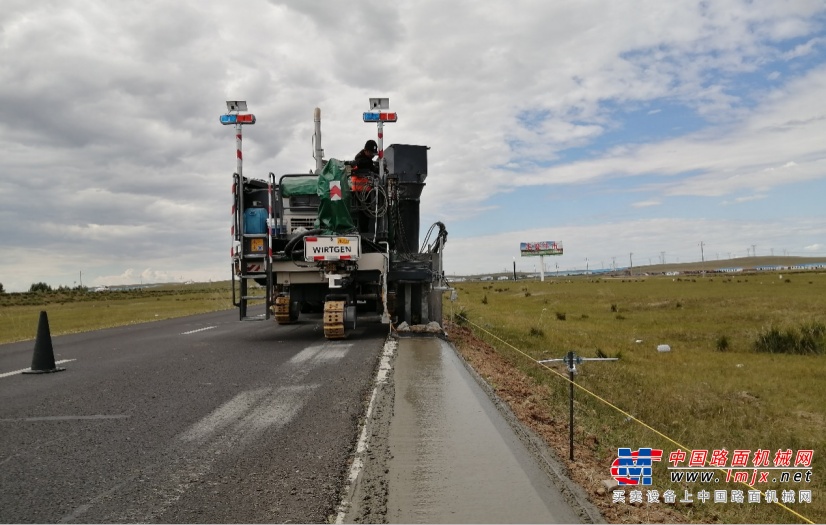

Application: Old road widening sliding form paving cement concrete shoulder plate
Location: Maodeng Ranch Section, S 307, Xilinhot, Inner Mongolia
Shoulder plate size: top width 60 cm, bottom width 75 cm, thickness 10 cm
Spreading speed: 6-8 m/min
Equipment highlights and technological advantages
Wittgen SP 15 slide pavers rely on high-precision leveling sensors and steering sensors to automatically move, ensuring that the structure can be completely in accordance with the preset line, elevation for accurate spreading
When the sliding form paver moves forward at a certain speed, a plurality of hydraulic vibrators installed in the mold vibrate the concrete at high frequency, that is, can continuously extrude a variety of uniform, high quality, smooth concrete structure, so as to ensure the ideal construction efficiency and effect. The feeding system can be flexibly adjusted and the mold can be installed on either side of the machine to meet a wide range of construction needs.
The surface of the shoulder plate paved by SP 15 is smooth and linear. More importantly, the finished product has excellent stability, homogeneity and compactness, better frost resistance and impermeability, which can greatly improve the service life of concrete structures in areas like grassland where the temperature difference between day and night and seasonal temperature changes greatly. Therefore, the late maintenance and maintenance cost is very low, especially for the vast and sparsely populated area of grassland.
Special thanks to the site material provided: Xie Yonglong, Wittgen China
News from：//news.lmjx.net/2022/202209/2022092914211123.shtml
